Steel shop drawings in Dubai and steel detailing services in the UAE

3D detailing models, fabrication shop drawings, erection drawings and material lists ready for the workshop.

3D view from a steel detailing model of a multi-storey building frame, with grid lines, steel columns, beams, roof trusses and bracing

Wrenze Steel is a steel detailing company in Dubai, preparing structural steel shop drawings for engineering consultancies, contractors and fabricators across the UAE and the GCC. Our team builds a precise 3D model of the steel structure, details every connection to the approved design, and issues the assembly, part and erection drawings your workshop needs to fabricate, ship and erect the steel. Because our detailing is backed by steel design engineers working to AISC 360 and the project specification, every drawing is consistent with the structural analysis and design, and accuracy is the first priority.

Structural steel detailing services in the UAE

Steel detailing is the step between the approved design and fabrication. The detailer turns design drawings and connection calculations into exact information for each piece of steel. Our steel detailing services cover:

  • A 3D model of every member, plate, bolt and weld
  • Connection detailing to the approved connection design, or connection design by our engineers when it is not provided
  • Clash checks between steel members, and against the architectural and MEP information we receive
  • Numbering of identical parts and assemblies, so the workshop fabricates them once as a batch
  • Drawing production, revision control and submission for approval

Steel shop drawings services in Dubai: what you receive

A complete shop drawing package normally includes:

  • Anchor bolt plans and base plate setting-out drawings for the civil contractor
  • General arrangement drawings: marking plans and elevations showing every assembly mark
  • Erection drawings showing where each assembly goes, its levels and its connections on site

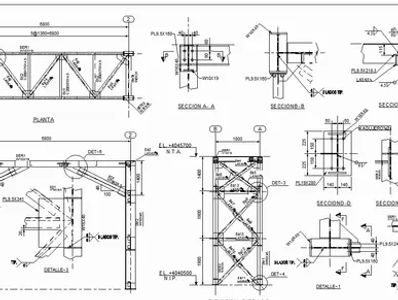

  • Assembly drawings, the structural fabrication drawings for each shipping piece, with dimensions, holes, weld symbols and a part list
  • Single-part drawings for plates, cleats, stiffeners and other loose parts
  • Bill of materials (BOM): material lists, assembly lists and bolt lists for purchasing and dispatch
  • NC and DXF files for cutting and drilling machines, where the fabricator needs them
  • The model or an IFC export for coordination, on request

All structural steel drawings are issued in PDF and DWG, with a drawing register and revision history. For a full explanation of each drawing type and report, read our guide what are shop drawings.

3D steel detailing models

We detail every project as a full 3D model. The drawings, the material lists and the machine files all come from that one model. When a member or connection changes, the drawings that show it update together, which removes the mismatches that happen when drawings are edited one by one.

3D detailing also lets us check the model before anything is printed. We run clash checks, confirm bolt access and edge distances, and check that each assembly suits transport and the lifting capacity on site. Problems found in the model cost far less to fix than problems found during erection. When the main contractor needs it, we export the model as an IFC file so the steel can be combined with the architectural and MEP models for coordination, as part of our structural BIM integration work.

How steel shop drawings are produced

  1. You send the approved design drawings, the connection design if available, the specification and the architectural drawings.
  2. We review the package and send a list of questions for any missing or conflicting information.
  3. We build the model, detail the connections and run the clash checks.
  4. We check the model and drawings against the design before issue.
  5. We issue the general arrangement and assembly drawings for approval by the consultant.
  6. We incorporate the comments and issue the drawings for fabrication, with the BOM and machine files.
  7. We revise the drawings for any later design or site changes, with each revision marked and logged.

Where steel detailing applies

We detail most types of steel structure, including:

Steel detailing projects

Our design and detailing work includes the Al Jazirat Al Hamra Heritage Village in Ras Al Khaimah for Atkins, the Esaad Building for Dubai Police in Dubai, and the Open Market Building at Qaryat Al Hidd in Abu Dhabi, where Khatib & Alami was the consultant. We also modelled and designed the 2,100 m² multi-span warehouse in Dubai Investment Park for Dubai National Construction LLC.

Steel detailing company backed by steel design engineers

At Wrenze Steel, the detailers work in the same team as the steel design engineers, so connection questions, design changes and consultant comments are answered by the people who designed the steel. This is why contractors who also need structural steel design or connection design use one firm for the full package.

Why Wrenze Steel

  • An experienced engineering team carrying out structural analysis and design to the international structural engineering codes and local authority requirements.
  • Our engineers hold Dubai Municipality practice certificates, and we prepare Dubai Municipality submissions through to approval.
  • One team handles the structural design, the connection design and the detailing, so the shop drawings follow the approved design without a hand-off between firms.
  • Engineers and detailers work in the same team, so connection questions are settled without waiting on another firm.
  • 96 projects completed across the UAE and the GCC.
  • Our office is in Dubai Silicon Oasis, and we deliver detailing packages across the UAE and the GCC.

Contact our engineers

For shop drawings and detailing enquiries, contact our engineers.

Shop drawings and detailing: questions

What is the difference between design drawings and shop drawings?

Design drawings show the structural system, member sizes and typical connections approved by the engineer. Shop drawings show every assembly and part with exact dimensions, holes, welds and marks, so the workshop can cut, drill, weld and ship each piece.

How are your steel shop drawings produced?

Every project is detailed as a full 3D model, and the drawings, reports and machine files are produced from it. Drawings are issued in PDF and DWG, and we can share the model or an IFC file when the contractor or consultant needs it for coordination.

Can you prepare shop drawings from the consultant's design drawings only?

Yes. Where the connections are not designed by others, our engineers design them first and the detailers model them to the approved calculations. This keeps the shop drawings consistent with the design and avoids comments at the approval stage.

Do you provide NC and DXF files for CNC machines?

Yes, where the fabricator needs them. NC and DXF files are exported from the same model as the drawings, together with the material, assembly and bolt lists, so the machine data and the drawings always match.

Can you add detailing capacity to our in-house team?

Yes. Fabricators send us part of a project or a full package when their own detailers are fully loaded. We work to your drawing templates and marking conventions where you provide them.

How do I choose a steel detailing company in Dubai?

Choose a steel detailing company that works with steel design engineers, so connection questions, design changes and consultant comments are resolved against the approved design. The shop drawings should be produced from a full 3D model to AISC 360 and the project specification, with assembly, part and erection drawings, material lists and NC files from the same model. To start, we need the approved design drawings, the connection design if available, the specification and the architectural drawings.
